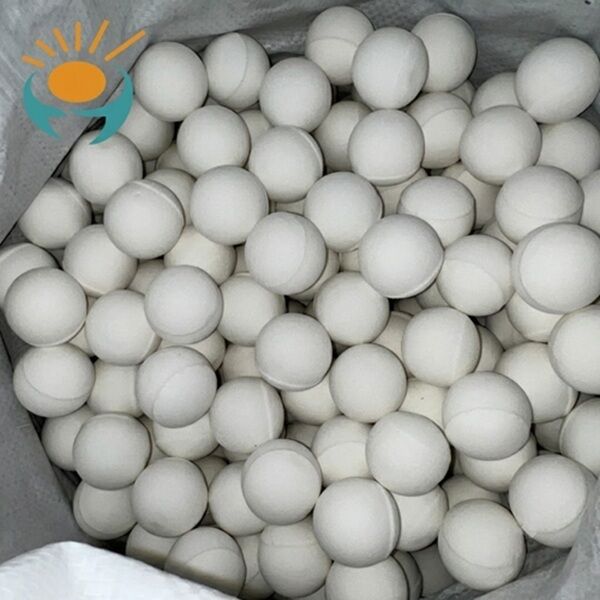

High-Density Alumina Ceramic Grinding Balls with Low Wear Loss

Product Description

HUAO Alumina Ceramic Grinding Balls are premium high-density grinding media engineered for critical wet and dry fine-grinding operations. Manufactured from ultra-fine calcined alumina powder through advanced rolling and isostatic pressing forming processes, these grinding spheres feature exceptional mechanical integrity, high Mohs hardness (9.0), and ultra-low self-wear rates. Designed for optimal grinding kinetics, HUAO provides two standardized series - AH-92 (Al₂O₃ ≥ 92%) and AH-95 (Al₂O₃ ≥ 95%) - delivering superior energy efficiency, zero batch contamination, and extended operational life across industrial milling environments.

Technical Parameters

Manufacturing Size Ranges

• Rolling Forming (0.5 mm < Φ < 50 mm): Precision spheres designed for micro-milling, ultra-fine grinding, and stirred vertical mills.
• Isostatic Pressing Forming (13 ≤ Φ ≤ 90 mm): Heavy-duty grinding media suited for large batch mills, continuous ball mills, and primary mineral processing.
• All size distributions can be customized according to specific customer requirements.

Key Features

• With a wear loss rate strictly controlled to ≤ 0.01%, HUAO ceramic media dramatically reduce grinding media consumption while protecting milled materials from iron or heavy metal contamination.
• Boasting a Mohs hardness of 9.0 and a dense crystalline phase, these grinding balls withstand severe high-speed impact and abrasive friction without spalling or fracturing.
• High bulk density (≥ 3.65 g/cm³ for AH-92 and ≥ 3.68 g/cm³ for AH-95) significantly increases kinetic impact force, shortening milling cycle times and reducing power consumption.
• Near-zero water absorption (≤ 0.01%) ensures superior chemical inertness against acid and alkali attack in demanding wet milling slurries.

Applications

Widely deployed for the ultra-fine grinding of ceramic body raw materials, glaze slurries, frit formulations, and high-purity electronic ceramic substrates, these grinding media serve as essential milling components in stirred mills, tower mills, and conventional ball mills for processing precious metals, hard minerals, and industrial fillers such as gold, copper, iron ore, calcium carbonate, kaolin, and zircon sand. Furthermore, they are extensively applied in both batch and continuous milling circuits for micronizing titanium dioxide, cement raw meal, high-performance coatings, catalysts, and specialized chemical minerals.

Why Choose HUAO

We utilize both automated rolling for small-size beads (0.5-50 mm) and cold isostatic pressing for larger spheres (13-90 mm), ensuring optimal density uniformity across all dimensions. Advanced thermal firing control guarantees a homogeneous grain structure with micro-porosity eliminated, providing predictable wear behavior throughout the media lifespan. As a specialized manufacturer, HUAO delivers stable volume supply, rigorous quality control on every lot, and complete international logistics support.

Customization & Packaging

Export packaging configurations include reinforced 25 kg/50 kg double woven bags or 1000 kg/1250 kg jumbo bags with moisture barrier. All packages are fixed to fumigated or non-fumigated wood and wrapped with stretch wrap to prevent damage during long distance ocean transportation. We also support Neutral Packaging and OEM printing custom brandmarks and shipping marks.

Products and packaging are customized according to customer requirements.

FAQ

Q1: Are HUAO manufacturing facilities certified under international quality management standards?

A1: Yes, HUAO operates in strict compliance with certified ISO 9001, ISO 14001, and ISO 45001 management systems, executing rigorous wear and density tests on every production lot.

Q2: What is the primary difference between AH-92 and AH-95 alumina grinding balls?

A2: AH-95 features higher Al₂O₃ content (≥ 95%) and higher bulk density (≥ 3.68 g/cm³), making it ideal for high-density, ultra-fine milling where maximum impact force and lowest wear are required.

Q3: How do alumina ceramic grinding balls save energy compared to natural pebbles or steel balls?

A3: Their higher density and hardness shorten grinding cycle times, while their smooth spherical geometry and uniform wear reduce power draw and prevent slurry overheating.

Q4: Which forming method is recommended for high-capacity continuous ball mills?

A4: Isostatically pressed grinding balls (13 mm to 90 mm) are recommended for continuous and large batch mills due to their high structural density and crush resistance under heavy loading.

Q5: Can HUAO provide customized sizes or graded charges for our ball mill?

A5: Yes, HUAO provides custom size production and pre-mixed graded charges according to your feed particle size, target output fineness, and mill parameters.

We also provide other alumina products. If you would like to learn more about White Fused Alumina, please click here.
