High-Hardness Alumina Ceramic Mosaic Tiles With Mohs 9

Product Overview

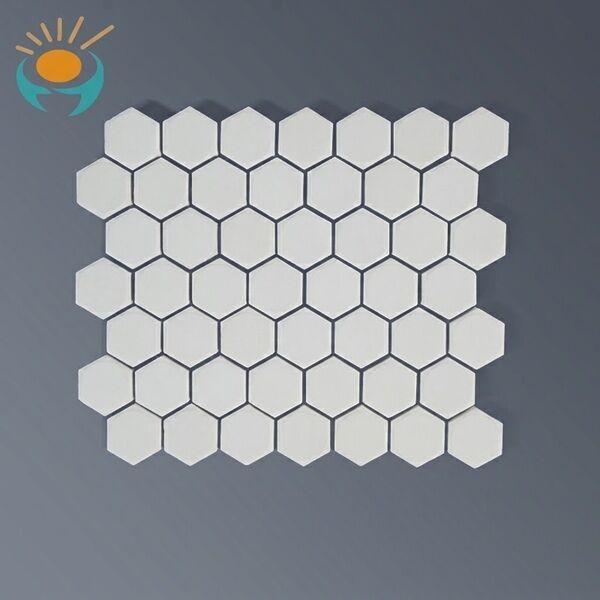

HUAO Wear-Resistant Alumina Ceramic Mosaic Tiles are premium protective lining materials engineered to safeguard industrial material conveying equipment against harsh erosion and mechanical abrasion. Available in standardized AH-92 (Al₂O₃ ≥ 92%) and AH-95 (Al₂O₃ ≥ 95%) grades, these high-density ceramic mats feature exceptional Mohs 9 hardness and minimal wear loss. Supplied in square and hexagon shapes which can be pre-assembled on flexible mats, they easily conform to complex curved pipe surfaces, chute bends, and cyclone inner walls.

Technical Parameters

Key Features

• Rated at Mohs 9, these ceramic mats resist intense sliding friction and particle abrasion under high-velocity flow conditions.
• A dense bulk structure (≥ 3.60 g/cm³ for AH-92 and ≥ 3.65 g/cm³ for AH-95) absorbs severe mechanical shocks.
• Available in square (10–24 mm) and hexagonal (12–20 mm) cuts with thicknesses ranging from 3 mm to 20 mm.
• Manufactured with near-zero wear loss (≤ 0.01%) and chemical stability, protecting against corrosive liquid slurry flow.

Advantages

• Prolonged Equipment Service Life: It can effectively buffer the impact force of pipeline walls and linings, extending the service life of operating machinery.
• Flexible Line-Conforming Installation: Small ceramic tile units installed on the backing mesh can match irregular curves, bends, and conical equipment geometries without structural gaps.
• Reduced Operational Downtime: It can prevent premature wear and burn through of heavy mud pipelines, reduce emergency maintenance frequency and overall costs.
• Optimized Slurry Throughput: Smooth tile surfaces can reduce friction losses and achieve efficient pneumatic transportation of liquid slurry and particles.

Applications

These ceramic mosaic tiles are widely used in material conveying equipment and pipeline surfaces in industries such as petroleum, mining, steel, power generation, cement, and chemical. They provide sturdy protection against severe impact and sliding wear caused by high-speed liquid and bulk material flows.

Customization & Packaging

We offer customized wear-resistant mosaic tile sizes, thickness options, and size customization after adhesive backing, which can meet specific pipe and groove configurations. In order to protect the goods during sea transportation, non adhesive mosaic tiles are packed in reinforced small bags weighing 25 kilograms, while adhesive mosaic tiles are safely boxed. All packaging is securely fixed on fumigated or non fumigated wooden pallets and shrunk. According to customer requirements, customized packaging configurations can be provided.

FAQ

We also provide other alumina products. If you would like to learn more about Alumina Ceramic Bricks, please click here.
